Product Model OPSE-ADLB-1T4U
-Support 12/13th Gen Intel Core i3 i5 i7 CPU
-Support HDMI/DP/Type-c Sync Dual Display, Async Triple Display
-Support TPM2.0
-Support Intel®vPro™
-Support HDMI 2.0 Output+JAE 80PIN HDMI 2.0 Output
-Support 2*SO-DIMM DDR4 Ram and M.2 SSD
-Support JAE 80PIN
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core i3-1220P(2P-cores+8E-cores, 12Threads, Max 4.4GHz, 12MB Cache) |
| Intel Core I5-1250PE(4P-cores+8E-cores, 16Threads, Max 4.4GHz, 12MB Cache) | |
| Intel Core i5-1335U(2P-cores+8E-cores, 12Threads, Max 4.6GHz, 12MB Cache) | |
| Chipset | Based on Raptor Lake/Alder Lake platform |
| Memory | 1*SO-DIMM DDR4 2666 Memory,Max support 32GB |
| storage | 1* M.2 2280 Supports NVMe and SATA (Manual Switching) |
1*2.5" SATA HDD/SDD | |
| Display | |
| Triple display | Intel® Iris® Xe Graphics |
HDMI/DP/Type-C Sync Dual Display, Async Triple Display | |
| I/O interface | |

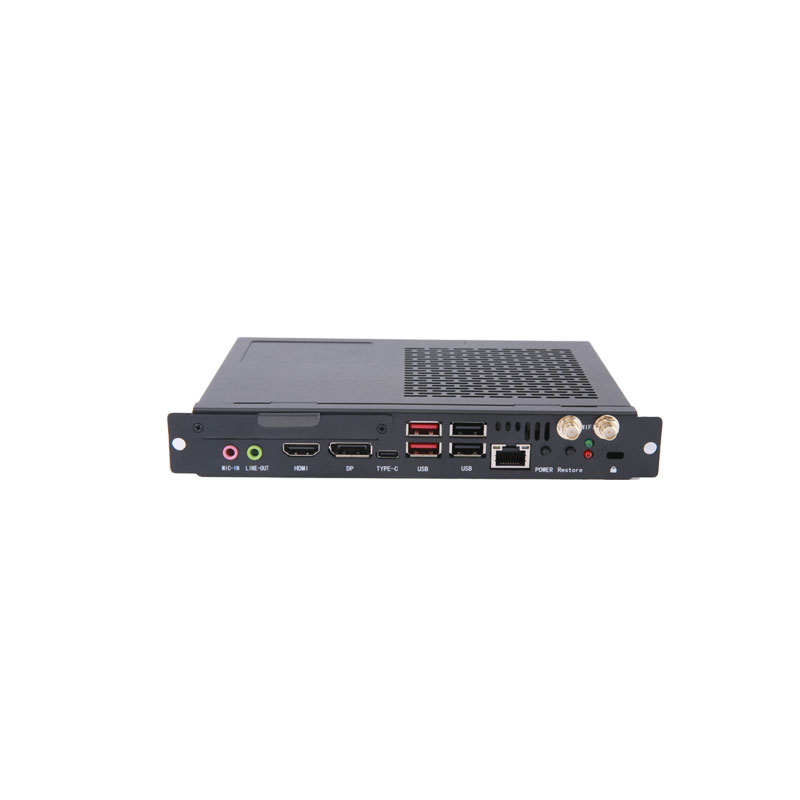

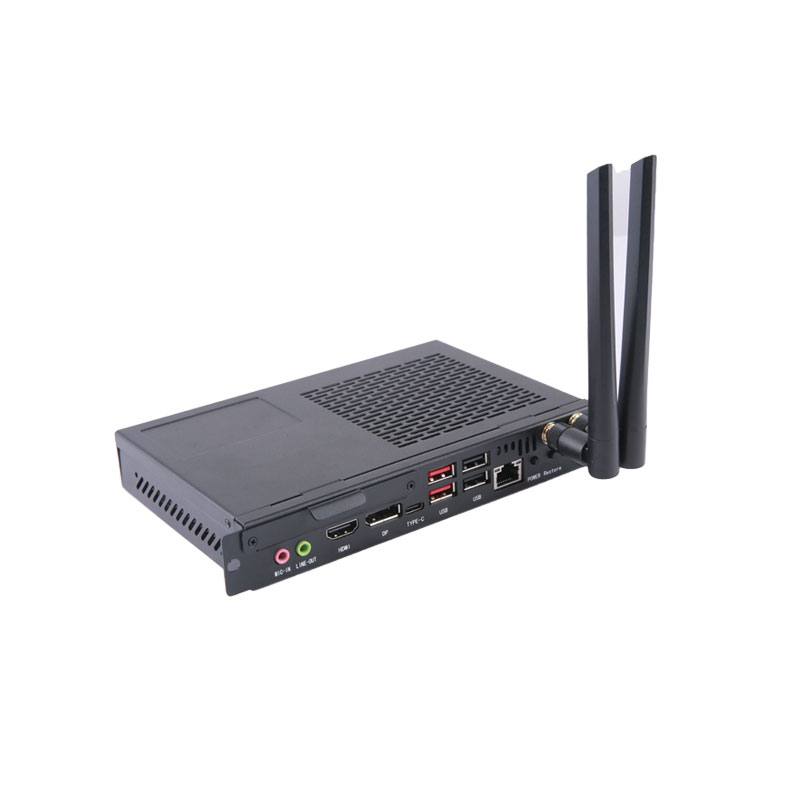

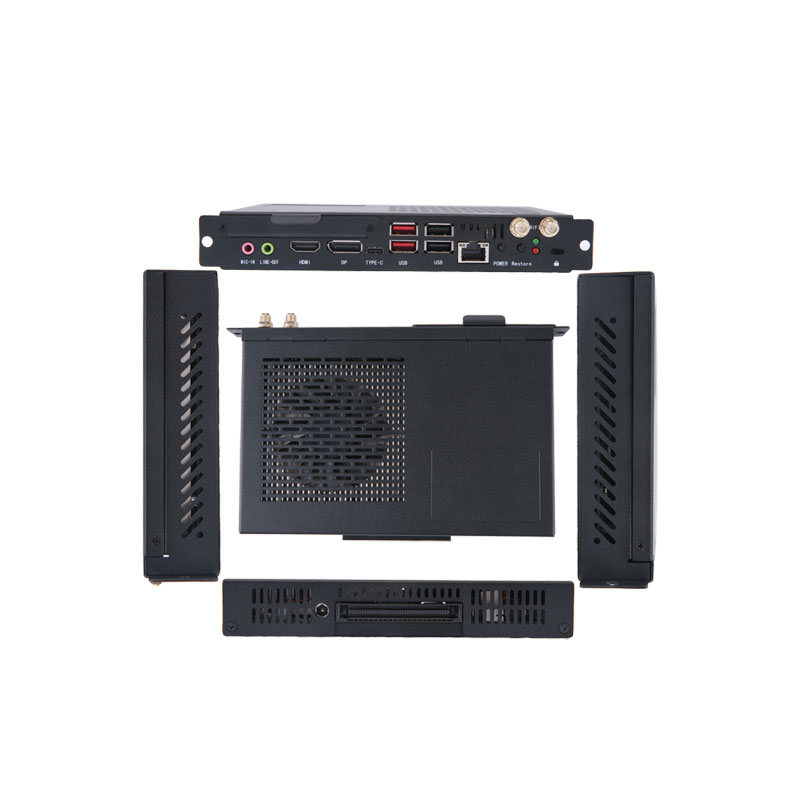

| Front I/O | 1*HDMI2.0 out ,1*DP1.4 out ,2*USB 3.2 Gen 2, 2*USB2.0,1* RJ45 |
| 1*Power,1* Restore,1*Line_out,1*Mic_in | |
1*Type-C(USB3.0+VIDEO),1*Power LED,1*HDD/SSD LED,2*WIFI/BT ANT | |

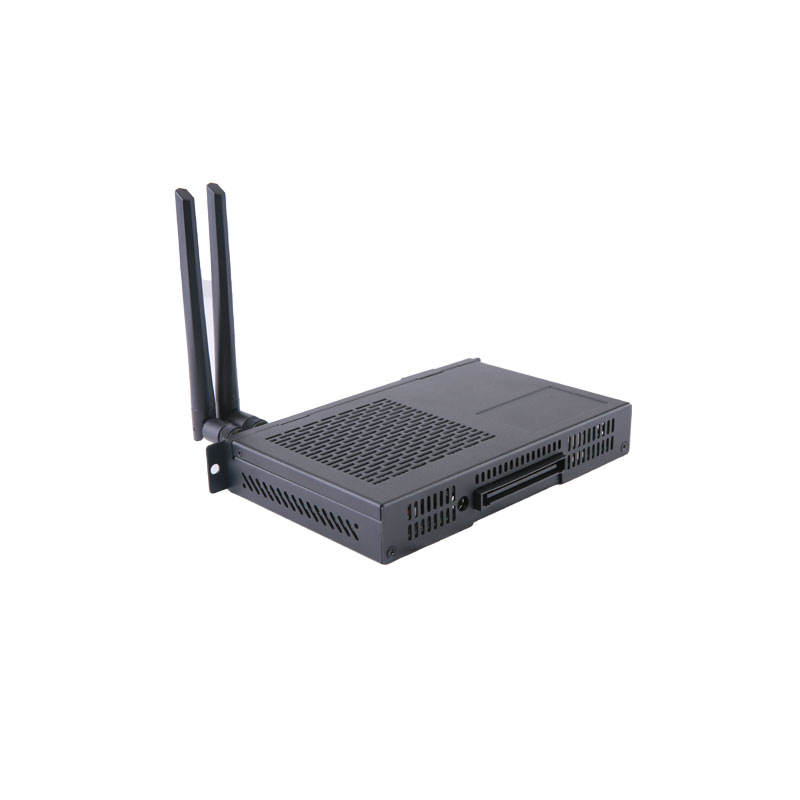

| Rear I/O | 1*DC IN,1*JAE 80PIN：HDMI2.0 out(4K/60Hz) |
| Electrical performance | |
| Power type | 19V 4.7A |
| Size & Weight | |
| Chassis size | 118mm*180mm*30mm |
| Chassis N.W. | 0.8kg |
| Package size | 280mm*200mm*70mm |
| Package weight | 1.0kg |
| Network support | |
| Network port | Intel I226 Gigabit Ethernet |
1*M.2 2230 for Wifi+BT | |
| System support | |
| operating system | Support Windows 10/Windows 11; Linux |
| Environmental parameters | |
| working temperature | 0℃~45℃ |
| Storage temperature | -40℃~80℃ |
| Working humidity | 10% - 95% @40°C Non-condensing |
** Other processors from the same CPU series can be selected to customize the product.
