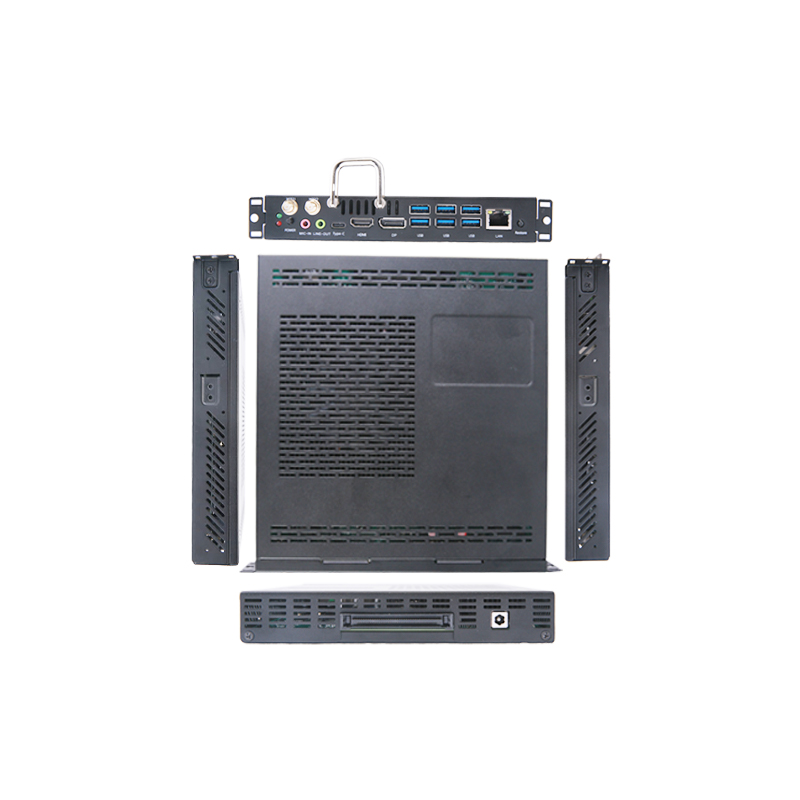

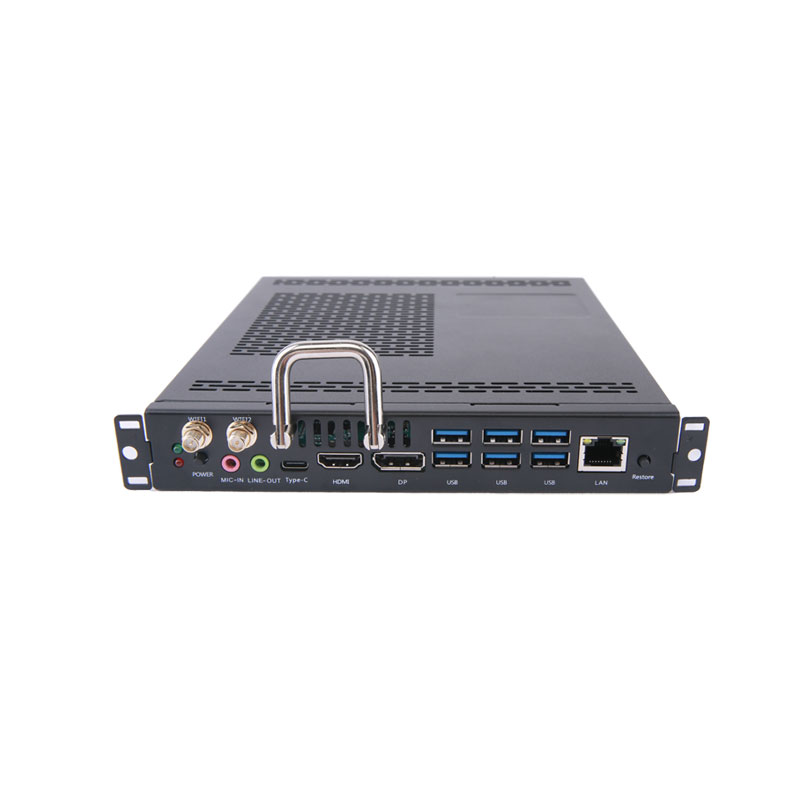

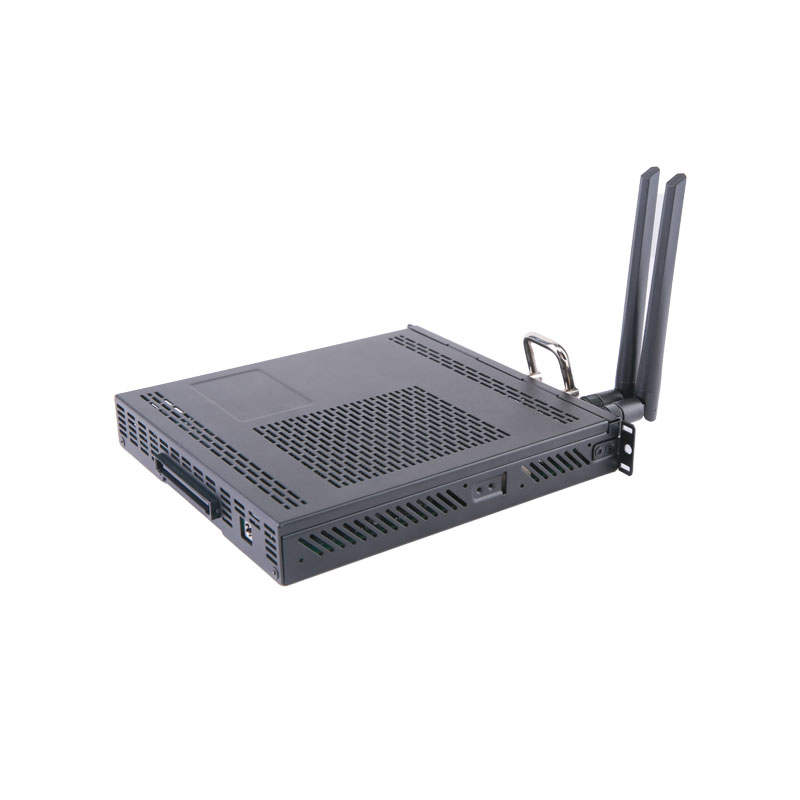

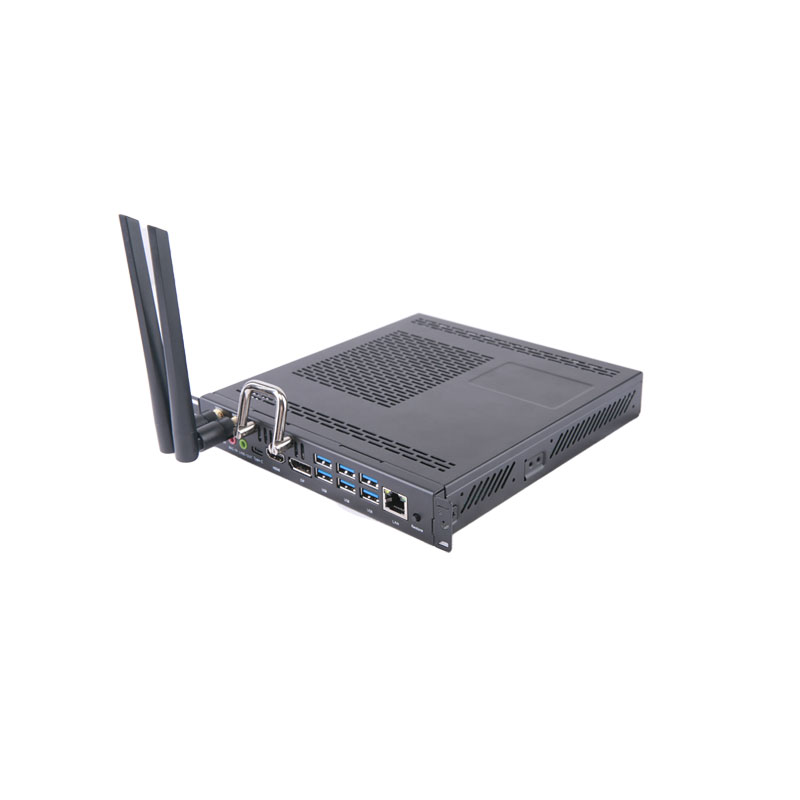

Product Model OPSA-1R6U
-Support 11th Gen Intel Core Processor
-Display interface: HDMI/DP, support sync dual display, async Triple display
-Support TPM2.0
-Support JAE 80PIN HDMI2.0 Output
-Support onboard LPDDR4x memory and M.2 SSD storage
-Support Wake on Lan, PXE startup & scheduled boot
-Support one-key backup and restore system
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core i3-1110G4(2C4T, Max 3.9GHz, 6MB Cache) |
| Intel Core i5-1130G7(4C8T, Max 4.0GHz, 8MB Cache) | |
| Intel Core i7-1180G7(4C8T, Max 4.6GHz, 12MB Cache) | |
| Chipset | Based on Tiger Lake platform |
| Memory | LPDDR4x 8GB 3733Mhz Memory |
| storage | 1*M.2 2280 support NVMe protocol |
| Display | |
| Double display | Intel Iris Xe Graphics |
HDMI/DP, support sync dual display/async triple display | |
| I/O interface | |
| Front I/O | 1*HDMI2.0 out ,1*DP1.4 out ,6*USB 3.2Gen1,1* RJ45,1*Type-C(USB2.0） |
| 1*Power,1* Restore,1*Line_out,1*Mic_in | |
1*Power LED,1*SSD LED,2*WIFI/BT ANT | |
| Rear I/O | 1*DC IN,1*JAE 80PIN：HDMI2.0 out(4K/60Hz) |
| Electrical performance | |
| Power type | 19V 4.7A |
| Size & Weight | |
| Chassis size | 195mm*180mm*30mm |
| Chassis N.W. | 1.2kg |
| Package size | 282mm*258mm*77mm |
| Package weight | 1.4kg |
| Network support | |
| Network port | 1* 8111H 10M/100M/1000M Etherne |
1*M.2 2230 for Wifi+BT | |
| System support | |
| operating system | Support Windows 10/Windows 11; Linux |
| Environmental parameters | |
| working temperature | 0℃~45℃ |
| Storage temperature | -40℃~80℃ |
| Working humidity | 10% - 95% @40°C Non-condensing |
** Other processors from the same CPU series can be selected to customize the product.
