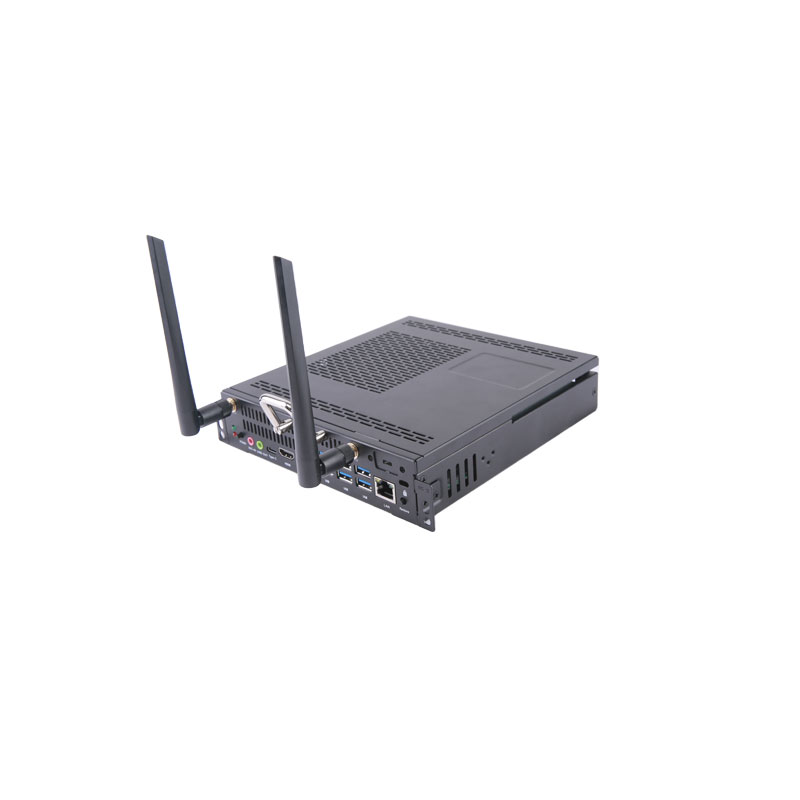

Product Model OPSC-H610-1T6U
-Support Alder/Raptor Lake-S 12th/13th/14th Gen Intel Core i3 i5 i7 CPU
-Display interface :HDMI out+DP out+Type-C
-Support dual-channel SO-DIMM DDR4 and M.2 SSD storage
-BIOS supports AMI 128Mbit diskless boot, power on and scheduled boot
-Support JAE 80PIN connection interface
-Support TPM2.0
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core I5-12400(6C12T, 2.5GHz~4.4GHz, 18MB Cache) |
| Intel Core I5-13400(10C16T, 1.8GHz~4.6GHz, 20MB Cache) | |
| Intel Core I5-14400(10C16T, 1.8GHz~4.7GHz, 20MB Cache) | |
| Chipset | Based on Raptor Lake/Alder Lake platform |
| Memory | 2*SO-DIMM DDR4 2666/3200MHz memory, Max support 64GB |
| storage | 1*M.2 2280 interface support NVMe and SATA Dual protocols |
1*2.5" SATA HDD/SDD | |
| Display | |
| Double display | Intel® UHD Graphics 730/770 |
DP/HDMI Sync & Async Dual Display | |
| I/O interface | |

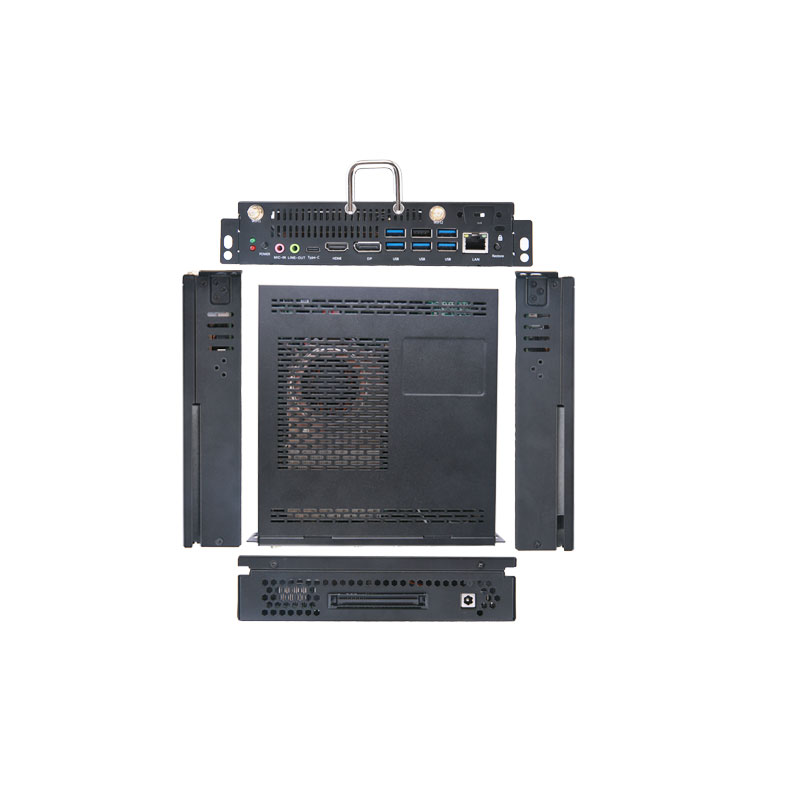

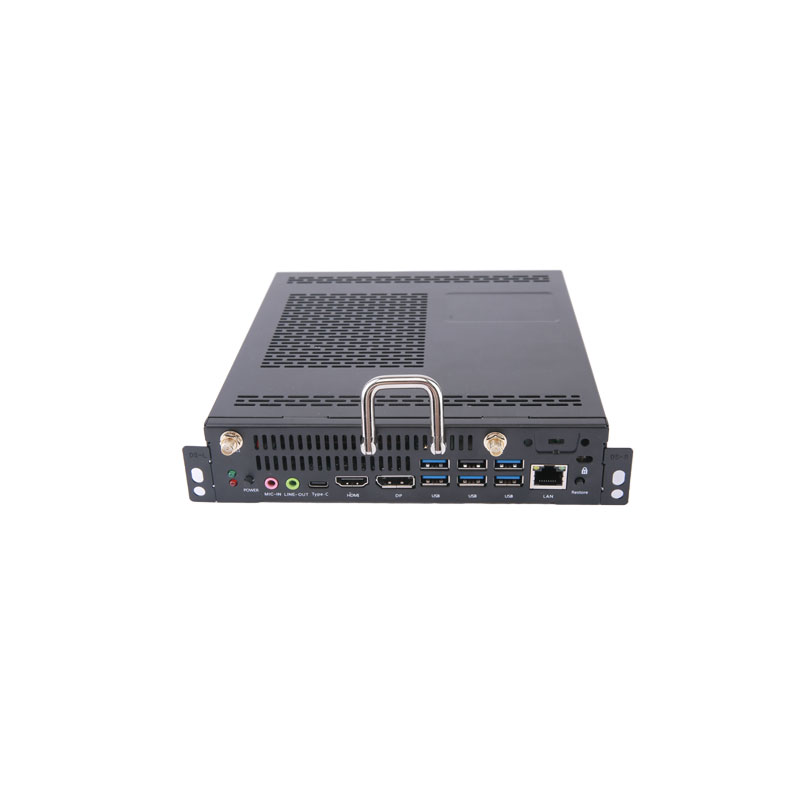

| Front I/O | 1*HDMI out ,1*DP out ,5*USB 3.0,1*USB2.0,1* RJ45 |
| 1*Power,1* Restore,1*Line_out,1*Mic_in | |
1*Type-C(USB 2.0),1*Power LED,1*HDD/SSD LED,2*WIFI/BT ANT | |

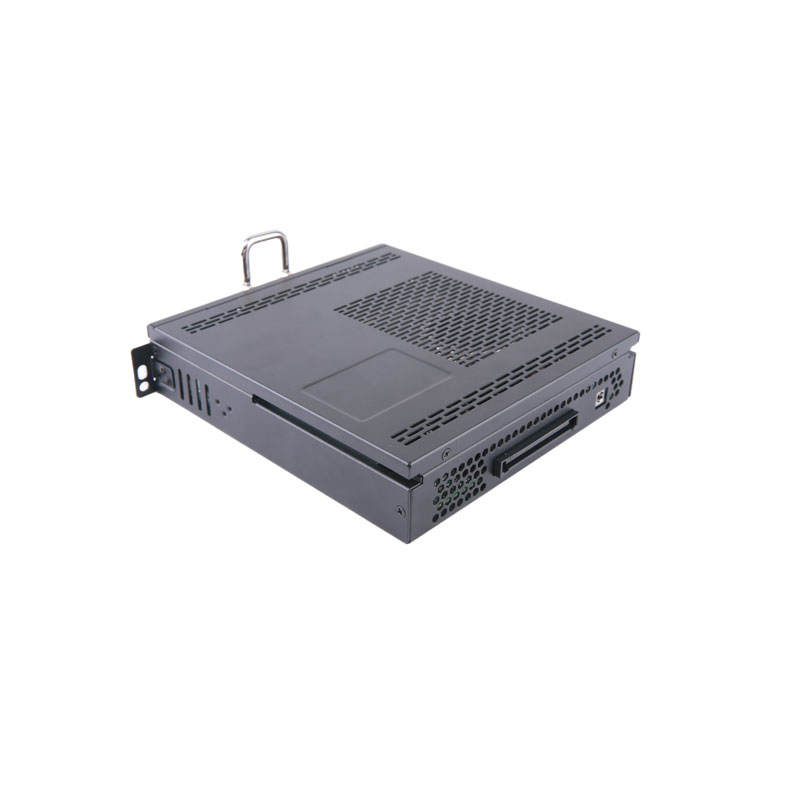

| Rear I/O | 1*DC IN,1*JAE 80PIN：HDMI2.0 out(4K/60Hz) |
| Electrical performance | |
| Power type | 19V 4.7A |
| Size & Weight | |
| Chassis size | 195mm*180mm*42mm |
| Chassis N.W. | 1.2kg |
| Package size | 282mm*257mm*79mm |
| Package weight | 1.4kg |
| Network support | |
| Network port | Intel I219 Gigabit Ethernet |
M.2 2230 for Wifi+BT(Optional：CNVi WiFi module) | |
| System support | |
| operating system | Support Windows 8/Windows 10/Windows 11; Linux |
| Environmental parameters | |
| working temperature | 0℃~45℃ |
| Storage temperature | -40℃~80℃ |
| Working humidity | 10% - 95% @40°C Non-condensing |
** Other processors from the same CPU series can be selected to customize the product.
