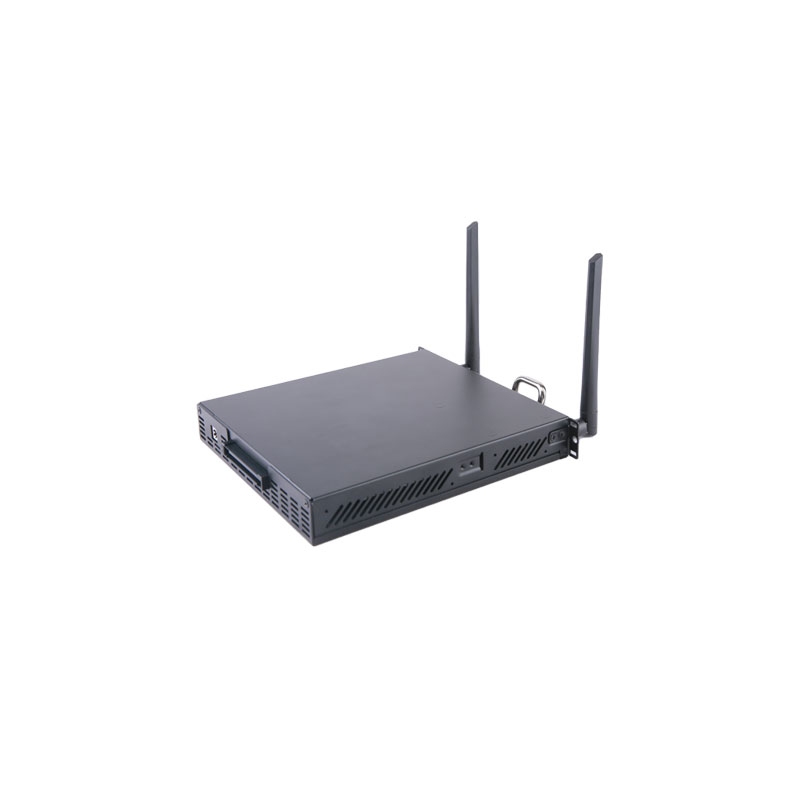

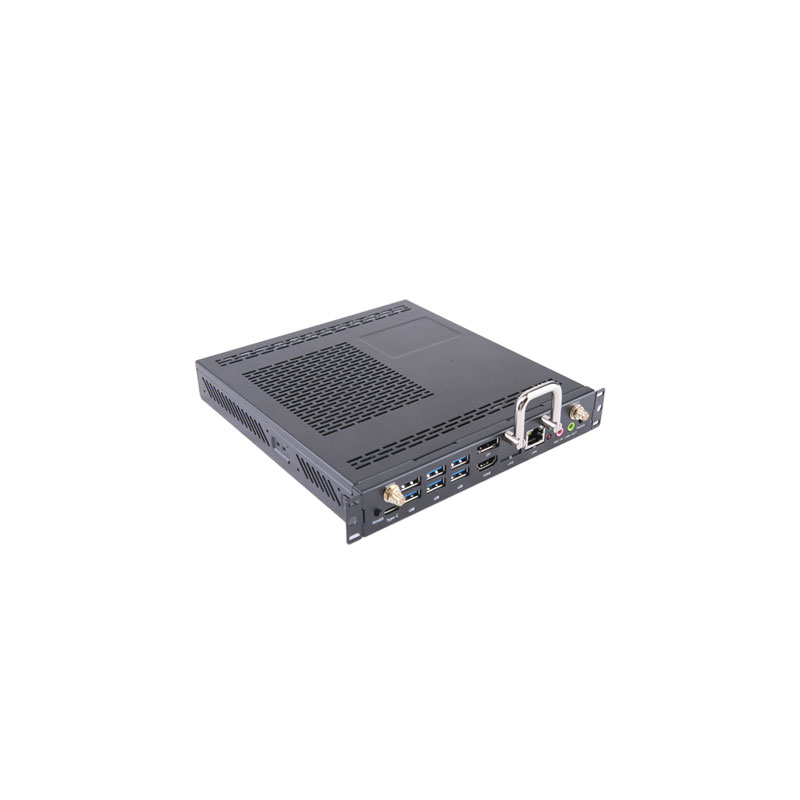

Product Model OPSA-ADLA-1R6U
-Support 12/13th Intel Core i3 i5 i7 CPU
-Display interface HDMI/DP, support sync dual display/async triple display
-Support TPM2.0
-BIOS support AMI 256Mbit Diskless startup, power on, scheduled boot
-Support HDMI 2.0 output+JAE 80PIN HDMI 2.0output
-Support SO-DIMM DDR4 RAM and M.2 SSD storage
-Support JAE 80 pin interface
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core i3-1220P(2P-cores+8E-cores, 12Threads, Max 4.4GHz, 12MB Cache) |
| Intel Core I3-1315U(2P-cores+4E-cores, 8Threads, Max 4.5GHz, 10MB Cache) | |
| Intel Core i5-1235U(2P-cores+8E-cores, 12Threads, Max 4.4GHz, 12MB Cache) | |
| Chipset | Based on Raptor Lake/Alder Lake platform |
| Memory | 1*SO-DIMM DDR4 2666 Memory,Max support 32GB |
| storage | 1*M.2 2280 interface support NVMe and SATA Dual protocols |
1*2.5" SATA HDD/SDD | |
| Display | |
| Double display | Intel® UHD Graphics |
HDMI/DP, support sync dual display/async triple display | |
| I/O interface | |

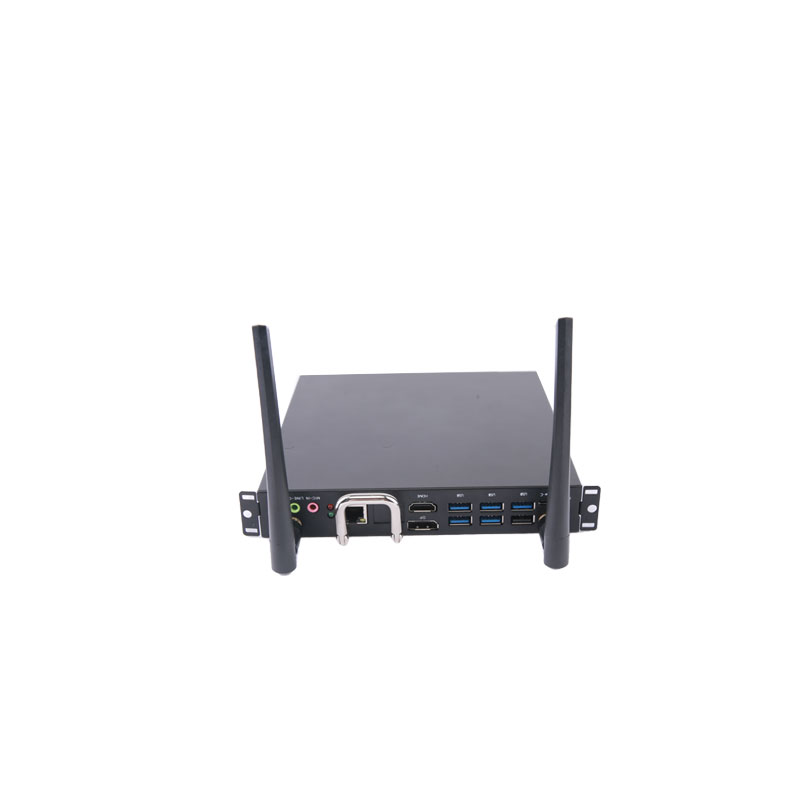

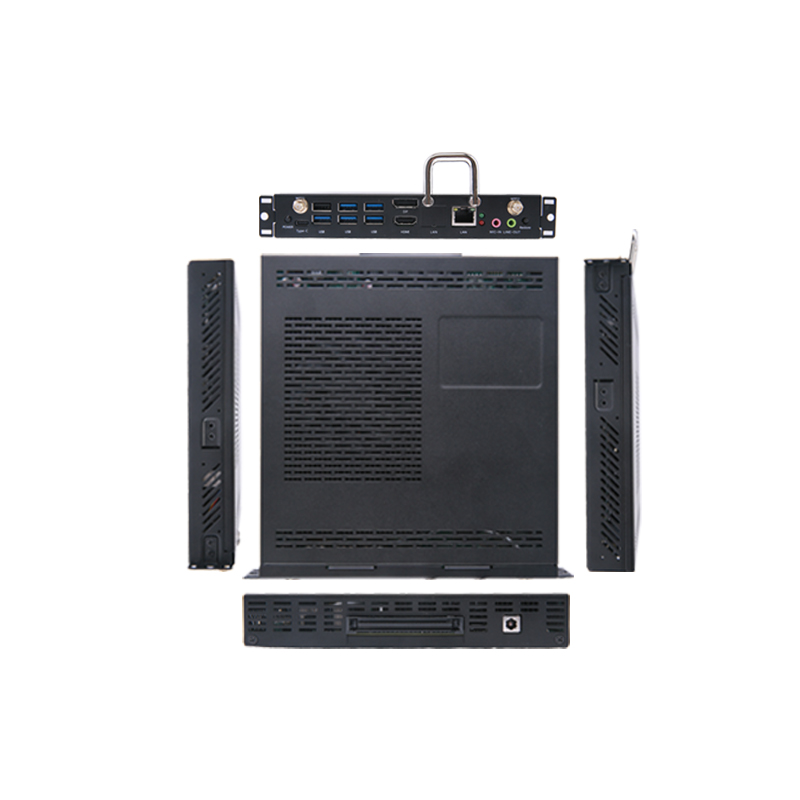

| Front I/O | 1*HDMI2.0 out ,1*DP1.4 out ,5*USB 3.0,1*USB2.0,1* RJ45 |
| 1*Power,1* Restore,1*Line_out,1*Mic_in | |
1*Type-C(USB 2.0),1*Power LED,1*HDD/SSD LED,2*WIFI/BT ANT | |
| Rear I/O | 1*DC IN,1*JAE 80PIN：HDMI2.0 out(4K/60Hz) |
| Electrical performance | |
| Power type | 19V 4.7A |
| Size & Weight | |
| Chassis size | 195mm*180mm*30mm |
| Chassis N.W. | 1.2kg |
| Package size | 282mm*258mm*77mm |
| Package weight | 1.4kg |
| Network support | |
| Network port | 1* 8111H 10M/100M/1000M Etherne |
1*M.2 2230 for Wifi+BT | |
| System support | |
| operating system | Support Windows 10/Windows 11; Linux |
| Environmental parameters | |
| working temperature | 0℃~45℃ |
| Storage temperature | -40℃~80℃ |
| Working humidity | 10% - 95% @40°C Non-condensing |
** Other processors from the same CPU series can be selected to customize the product.
