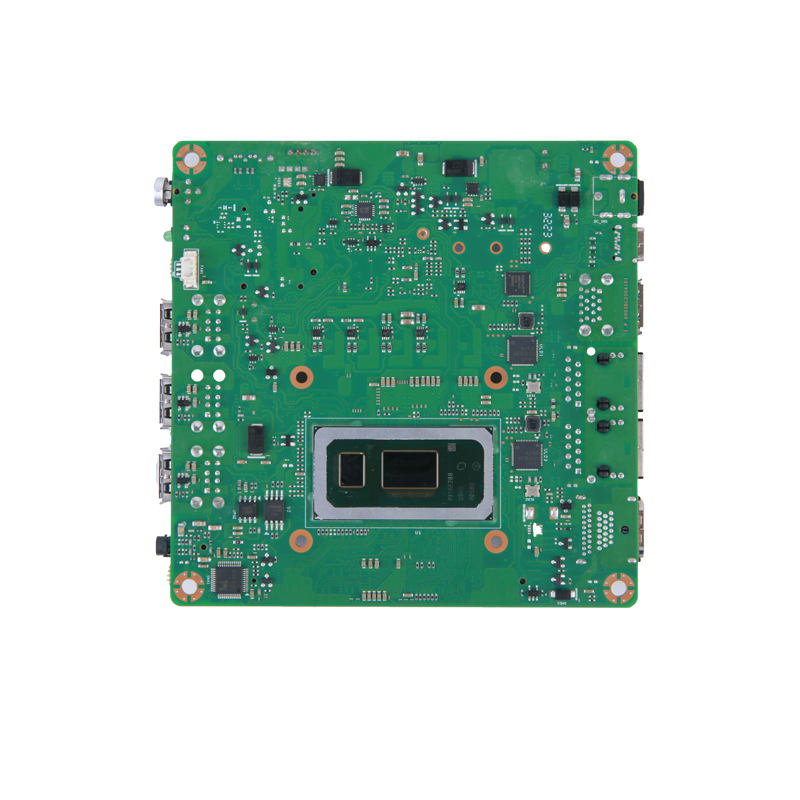

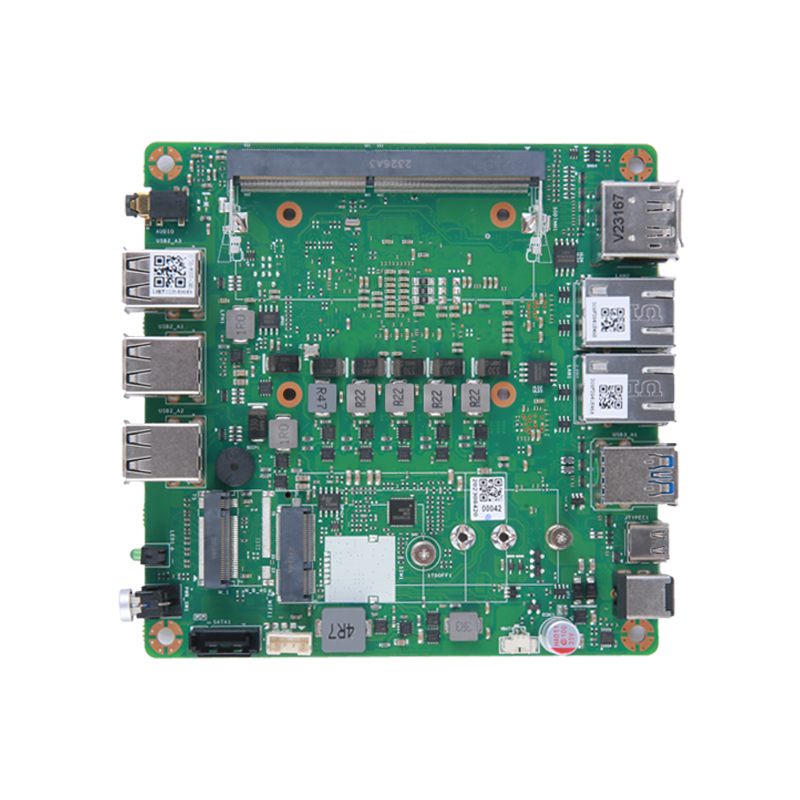

Product Model NANO-WKLA-2T8U
-Support Core i3/i5/i7 8th 10th CPU
-1* DDR4 SODIMM slot
-M.2, 2.5" SATA Dual hard drive
-2*Intel 2.5G 1000M LAN
-1*Type C,1*HDMI,1*DP Async triple display
Category | content |
| Internal Central Processing Unit (CPU) | lntel Core i5-10210U (4C8T,1.6GHz~4.2GHz,6MB) |
| lntel Core i5-8265U (4C8T,1.6GHz~3.9GHz,6MB) | |
| Chipset | Based on Intel Whiskey Lake-U,Comet Lake-U platform |
| Memory | 1 * DDR4 SODIMM slot, supporting up to 32GB |
| storage | 1*M.2 M-Key 2280, support NVME/NGFF |
1*2.5"SATA3.0 slot | |
| Display | |
| Triple Display | Integrated Intel UHD Graphics |
| Support 1*HDMI,1*DP,1*Type C | |
Support Sync or Async display | |
| I/O interface | |

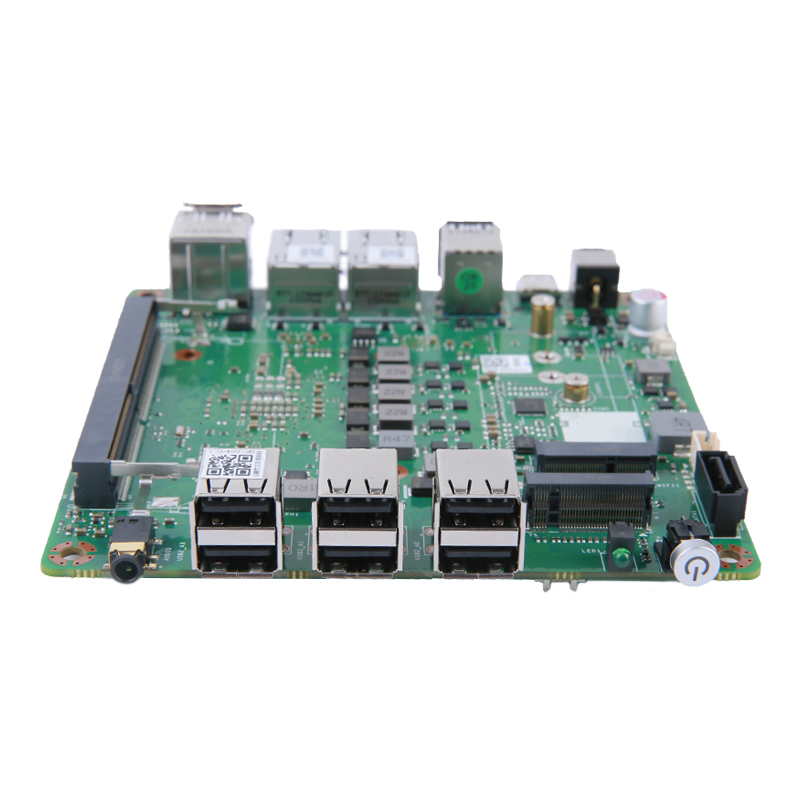

Front I/O | 1*Audio( 2 in 1);6*USB2.0 |
1*Power button | |

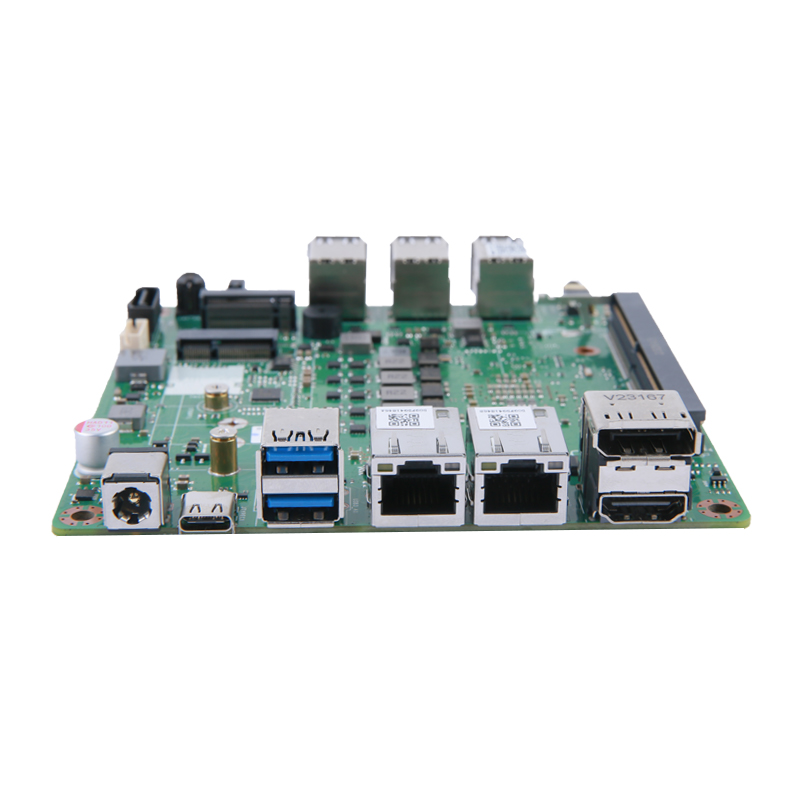

Rear I/O | 1*DC-IN;1*Type C |
| 2*USB3.0 | |
| 1*HDMI;1*DP | |
2*RJ-45 LAN | |
| Expansion slot | 1*M.2 E-KEY 2230/CNVi Slot, support Wifi module |
| 1*M.2 B-KEY Slot, support 4G LTE/5G module *[ext] | |
1* SIM card slot *[ext] | |
| Electrical performance | |
| Power type | DC 12V |
| Institutional parameters | |
| size | 120mm*120mm |
| Network support | |
| Network port | 2*Intel I226-V 2.5G 10/100/1000M Lan ports |
| System support | |
| operating system | Windows 10/11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
*[ext]: This component is an extension and is not included by default.
