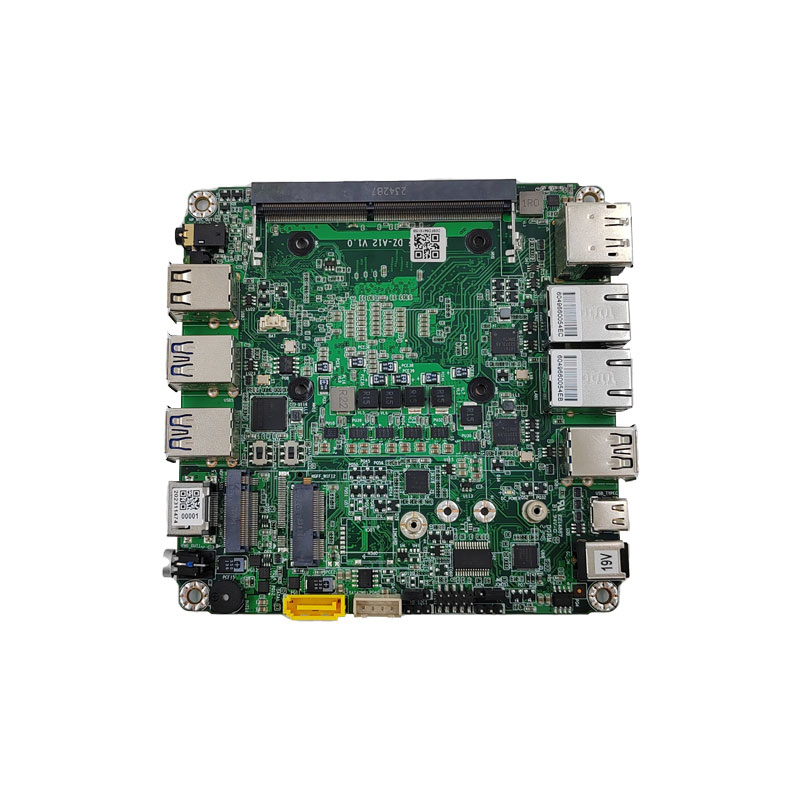

Product Model NANO-ADLB-2T8U
-Support Core i3/i5/i7 12th CPU
-1* DDR4 SODIMM slot
-Turbo cooler Heat-dissipating Fan
-2* Intel 2.5G NICs
-1*Type C, 2*HDMI, 1*DP Sync or Async quad display
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core i5-1235U(2 P-cores, 8 E-cores, 12Threads, 3.3GHz~4.4GHz, 12MB Cache) |
Intel Core i5-1240P(4 P-cores, 8 E-cores, 16Threads, 3.3GHz~4.4GHz, 12MB Cache) | |
| Chipset | Based on the Intel Alder Lake platforms |
| Memory | 1 * DDR4 SODIMM slot, supporting up to 32GB |
| storage | 1 * M.2 M-KEY 2280 interface, supporting NVMe/NGFF (Controlled by 2 switches beside M.2 slot) |
1* 2.5" SATA 3.0 slot | |
| Display | |
| Triple Dispaly | Integrated Intel® Iris® Xe Graphics eligible |
| 2*HDMI, 1*DP, 1*Type-C output | |
Supports synchronous dual display, asynchronous triple display | |
| I/O interface | |
Front I/O | 1* Audio; 4*USB3.0; 2*USB2.0; 1*HDMI |
1*Power button | |
Rear I/O | 1*DC-IN; 1*Type C |
| 1*USB3.0; 1*USB2.0 | |
| 2*RJ 45 | |
1*HDMI; 1*DP | |
| Inner I/O | 1* JME、1* JCMOS、1* JCOM、1* J_AT/ATX、 |
| 1* SATA、 1* SATAPWR | |
| Expansion slot | 1*M.2 E-KEY 2230/CNVi Slot, support Wifi module |
1*M.2 B-KEY Slot, support 4G LTE/5G module *[ext] | |
1* SIM card slot *[ext] | |
| Electrical performance | |
| Power type | Suggest using 19V 4.74A |
| Institutional parameters | |
| size | 120mm*120mm |
| Network support | |
| Network port | 2*I226-V 2.5G Ethernet |
| System support | |
| operating system | Windows 10/11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
*[ext]: This component is an extension and is not included by default.
