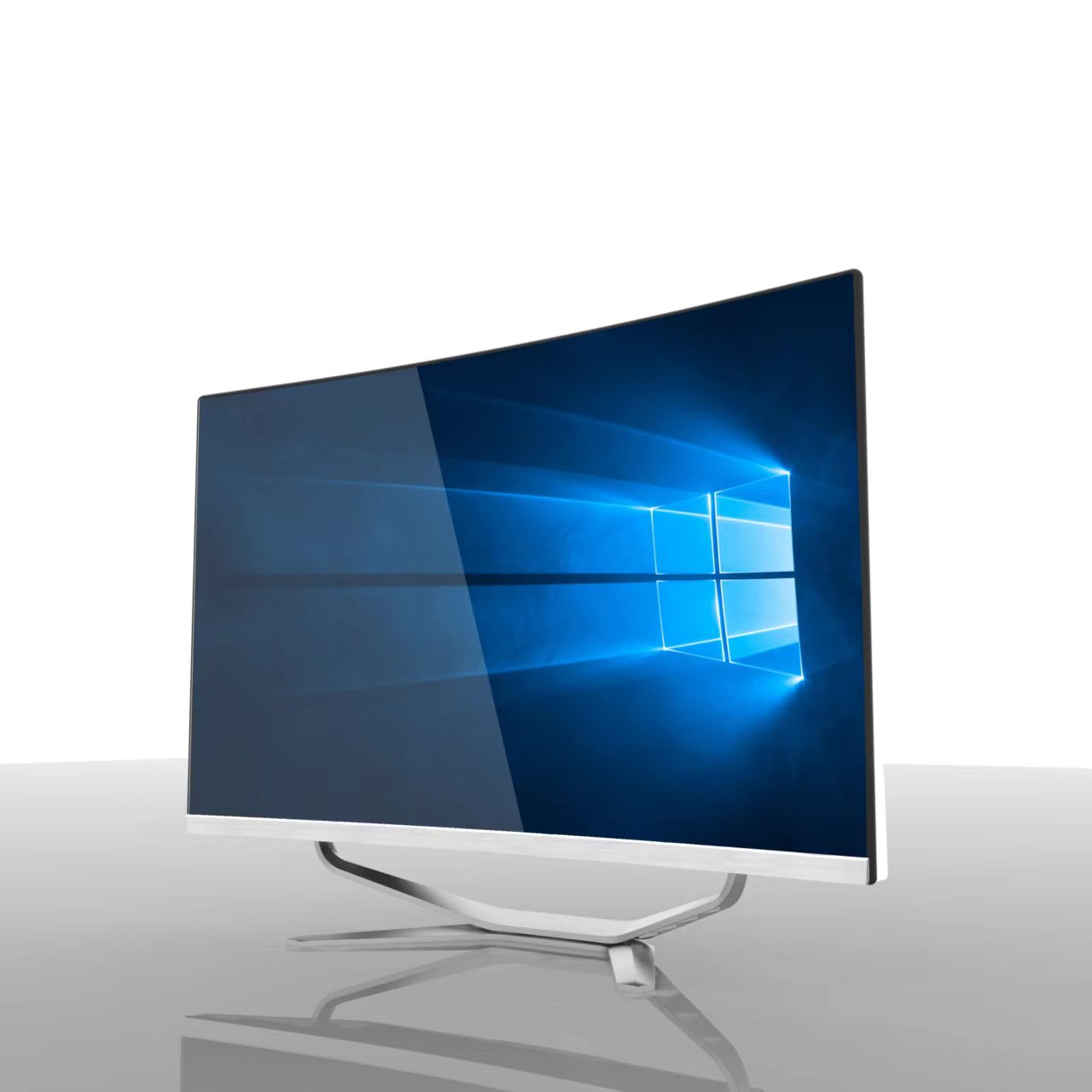

Product model AIO-27-1R6U
-All in one computer, get rid of huge Tower case, kinds of cables.
-27" HD curved screen
-Core I3 I5 I7 3rd generation to 10th gen optional
-SODIMM RAM Slot
-1x mSATA slot; 1x 2.5'' SATA slot
| Model No | AIO-AI34 | |
| Display | Size of screen | 27" |
| Active Area | 597.888(H) × 336.314(V) | |
| Luminance | 250cd/m² | |
| Contrast ratio | 1000:1 | |
| Resolution | 1920*1080@60hz | |
| Screen ratio | 16:9 | |
| Response time | 14 ms | |
| Viewing angle | H/V 178°/178° | |
| Colors | 16.7M colors | |
| Curvature | 1800R | |
| Board Size | MINI-ITX(170mm*170mm) | |
| CPU | Core I3 I5 I7 3rd generation to 10th gen | |
| RAM | Based on CPU | |
| Storage | 128G/256G/512G/1T | |
| LED Strip Output | 54V 240mA | |
| Inner Speaker | High-fidelity cabinet speaker(3070) | |
| Heat Dissipation | Desktop PC 115*pin CPU cooler | |
| External Interfaces | Front USB2.0*2 | |
| Buttons | POWER | |
| Power | Power Consumption | As per usage |
| Power adaptor | AC: 110-220V | |
| Power LED | Power on : Green(LED) | |
| Working Enviroment | Temperature | 0°C - 40°C |
| R.H. | 20% ~ 85% R.H. @ Non-Condensing | |
| Storage Enviroment | Temperature | -20°C - +60°C |
| R.H. | 5% - 90% R.H. @ Non-Condensing | |
| Physical | Dimension | 615（Ｗ）*440(Ｈ)*8mm(Ｄ)/72mm Stand: 167mm |
| Stand type | Double fork (silver) | |
| Vertical tilted angle | -5∘~ 15∘ ，±2∘ | |
| Accessories | Power adaptor | |
| Power cord | ||
| Color | White | |
| Packing Size | 685 ( w) *215(D)*515(H)mm | |
| G.W. | 5.8Kg | |
| N.W. | 4.28Kg | |
