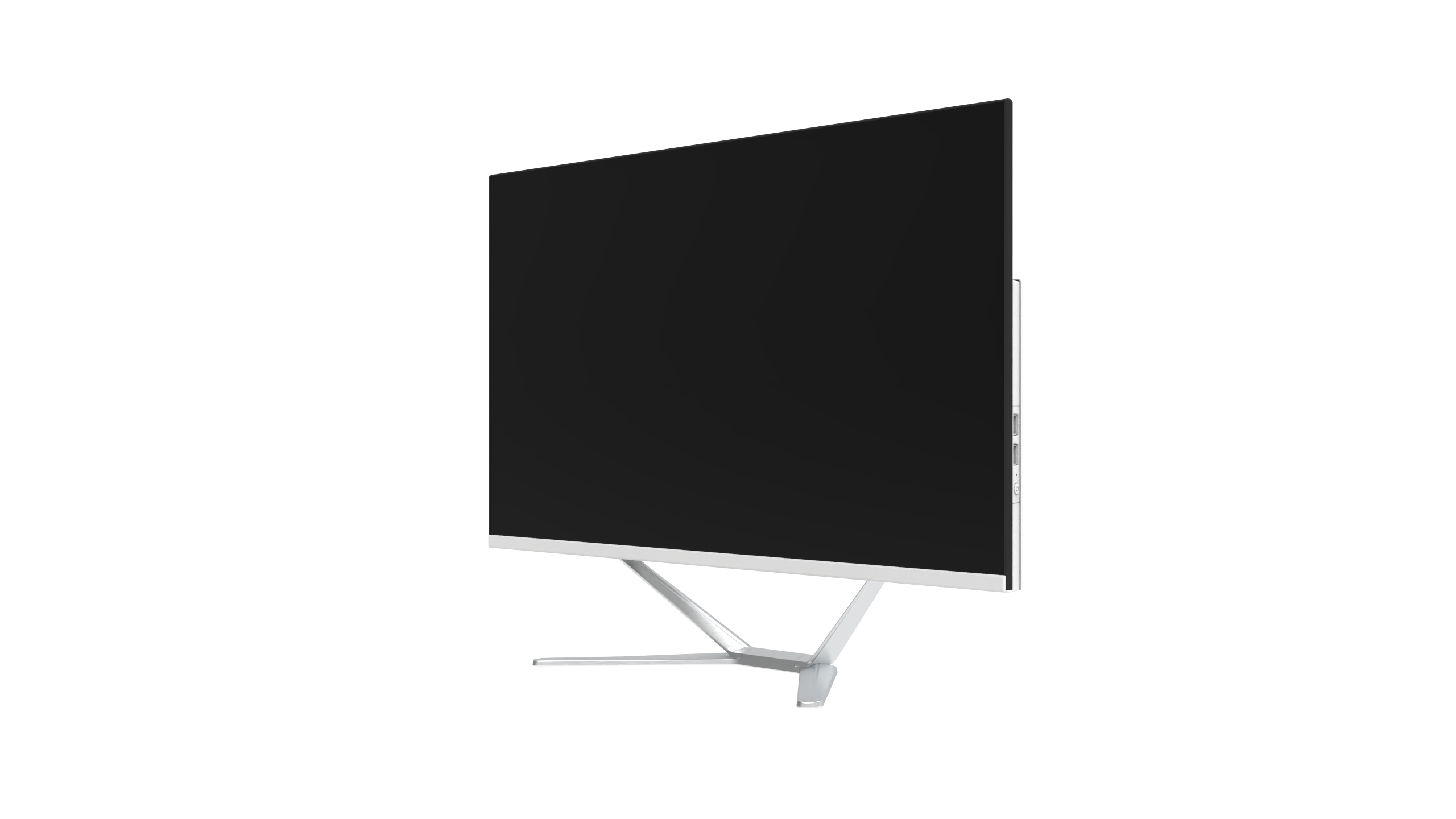

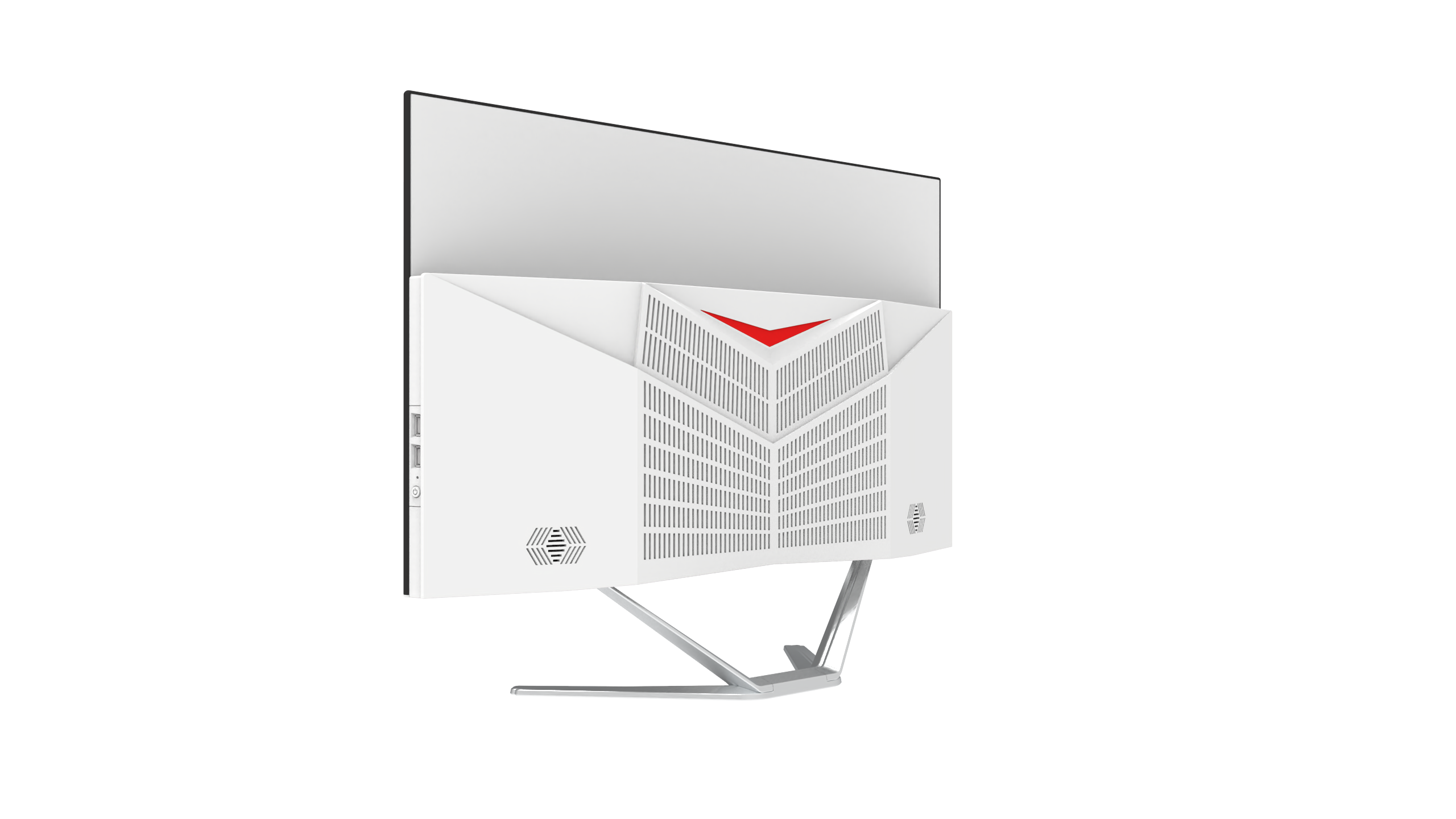

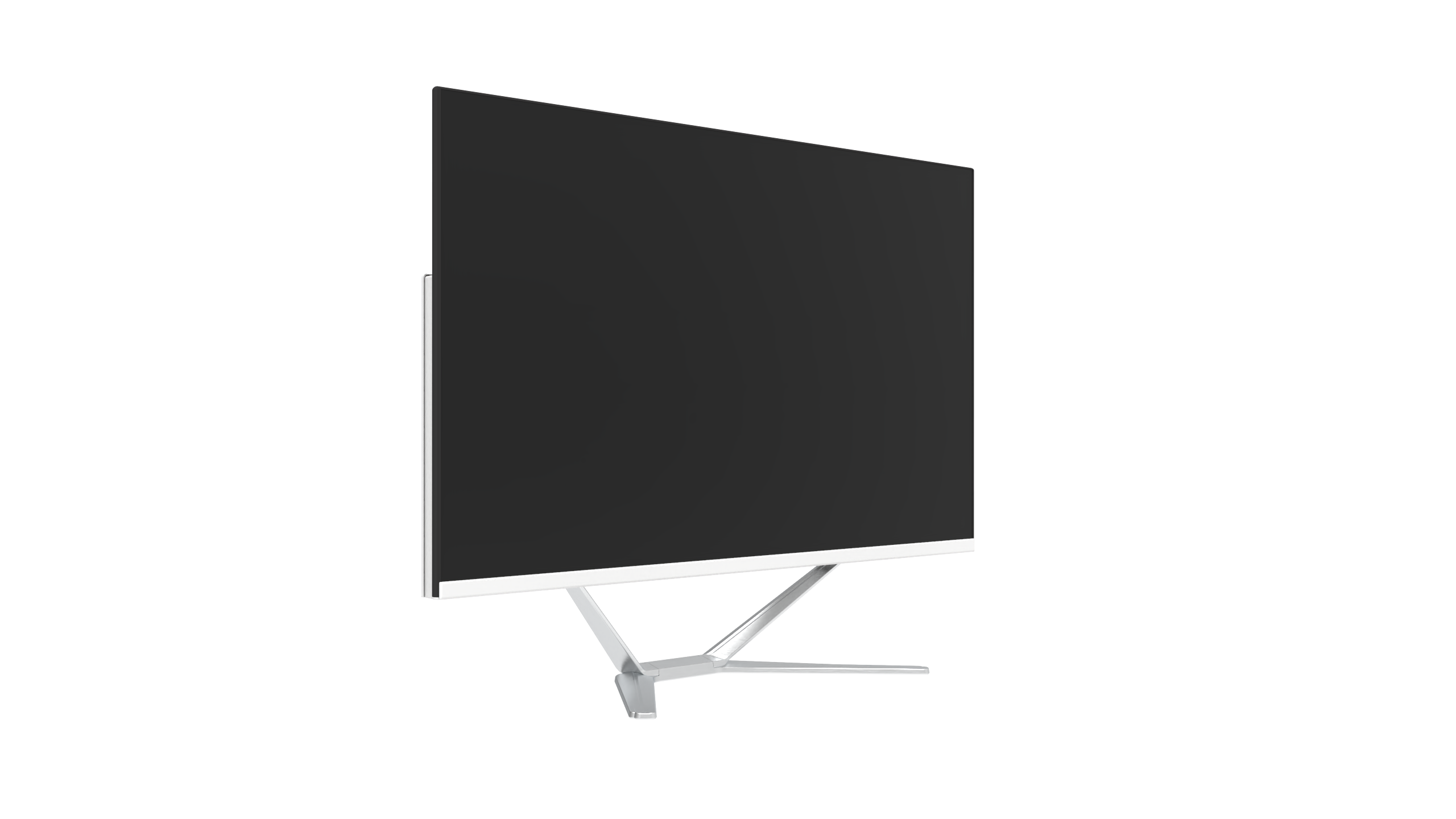

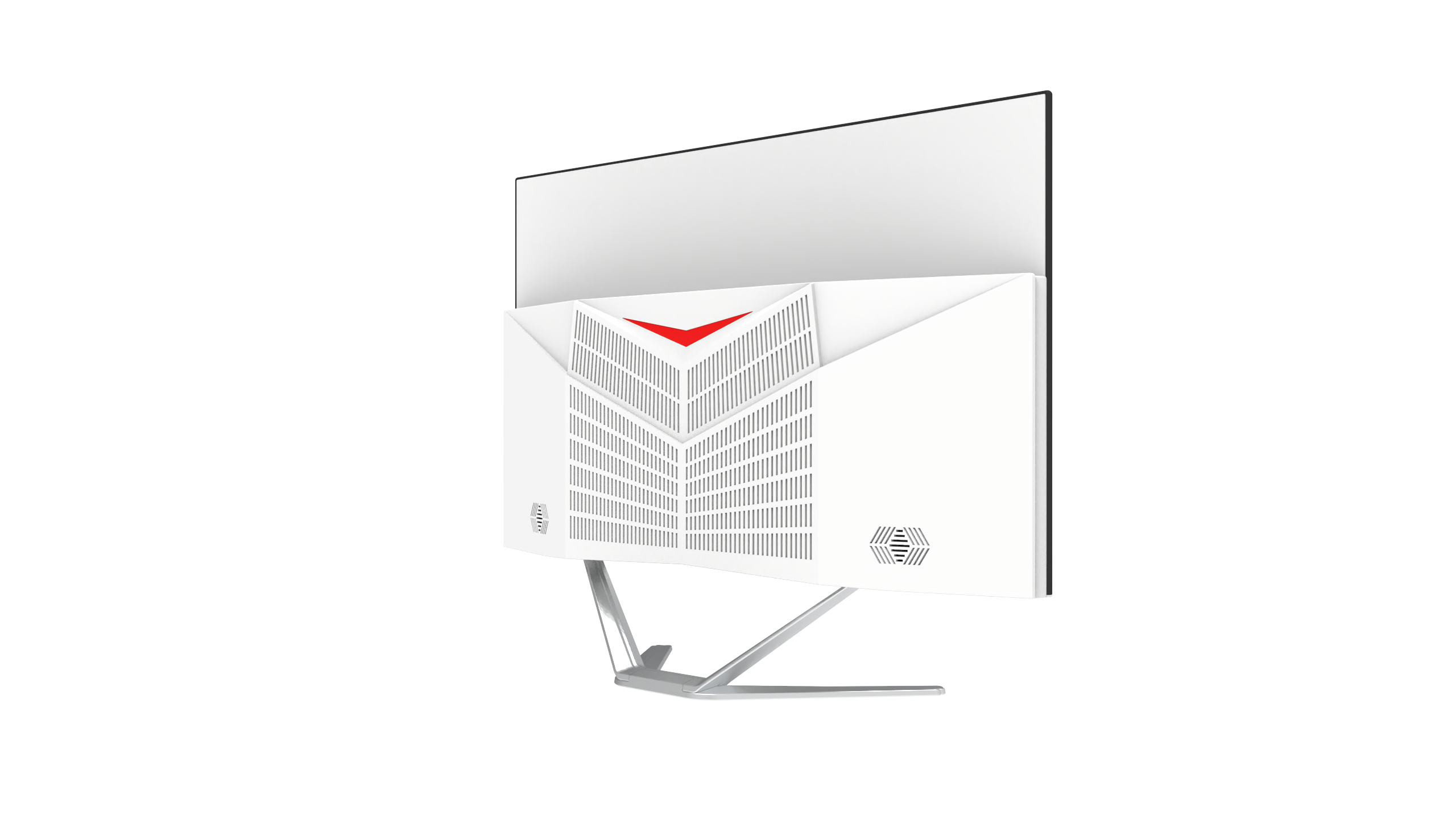

Product model AIO-27-1R6U
-All in one computer, get rid of huge Tower case, kinds of cables.
-27" HD flat screen
-Core I3 I5 I7 3rd generation to 10th gen optional
-SODIMM RAM Slot
-1x mSATA slot; 1x 2.5'' SATA slot
| Model No | AIO-AI34 | |
| Display | Size of screen | 27" |
| Active Area | 597.888(H) × 336.314(V) | |
| Luminance | 250cd/m² | |
| Contrast ratio | 1000:1 | |
| Resolution | 1920*1080@60hz | |
| Screen ratio | 16:9 | |
| Response time | 14ms | |
| Viewing angle | H/V 178°/178° | |
| Colors | 16.7M colors | |
| Board Size | MINI-ITX(170mm*170mm) | |
| CPU | Core I3 I5 I7 3rd generation to 10th gen | |
| RAM | Based on CPU | |
| Storage | 128G/256G/512G/1T | |
| Wireless | Bluetooth/ WIFI（RTL8821） | |
| Inner Speaker | High-fidelity cabinet speaker(3070) | |
| Heat Dissipation | Fan cooling | |
| I/O Ports | 1LAN(R)+1HDMI+1VGA+6USB+AUDIO | |
| Buttons | POWER, RESET button | |
| Power | Power Consumption | As per usage |
| Power adaptor | AC: 110-220V/DC:12V,5A | |
| Power LED | Power on : Blue(LED) | |
| Working Enviroment | Temperature | 0°C - 40°C |
| R.H. | 20% ~ 85% R.H. @ Non-Condensing | |
| Storage Enviroment | Temperature | -20°C - +60°C |
| R.H. | 5% - 90% R.H. @ Non-Condensing | |
| Physical | Dimension | 500（Ｗ）*375(Ｈ)*10mm(Ｄ) Stand: 160mm |
| Stand type | Mermaid V Shape (Sliver) | |
| Vertical tilted angle | -5∘~ 15∘ ，±2∘ | |
| Accessories | Power adaptor | |
| Power cord | ||
| Color | White | |
| Packing Size | 680 ( w) *165(D)*520(H)mm | |
| G.W. | 6.8Kg | |
| N.W. | 5.25Kg | |
| Foam Size | 665(W)*155（D)*500(H)mm | |
