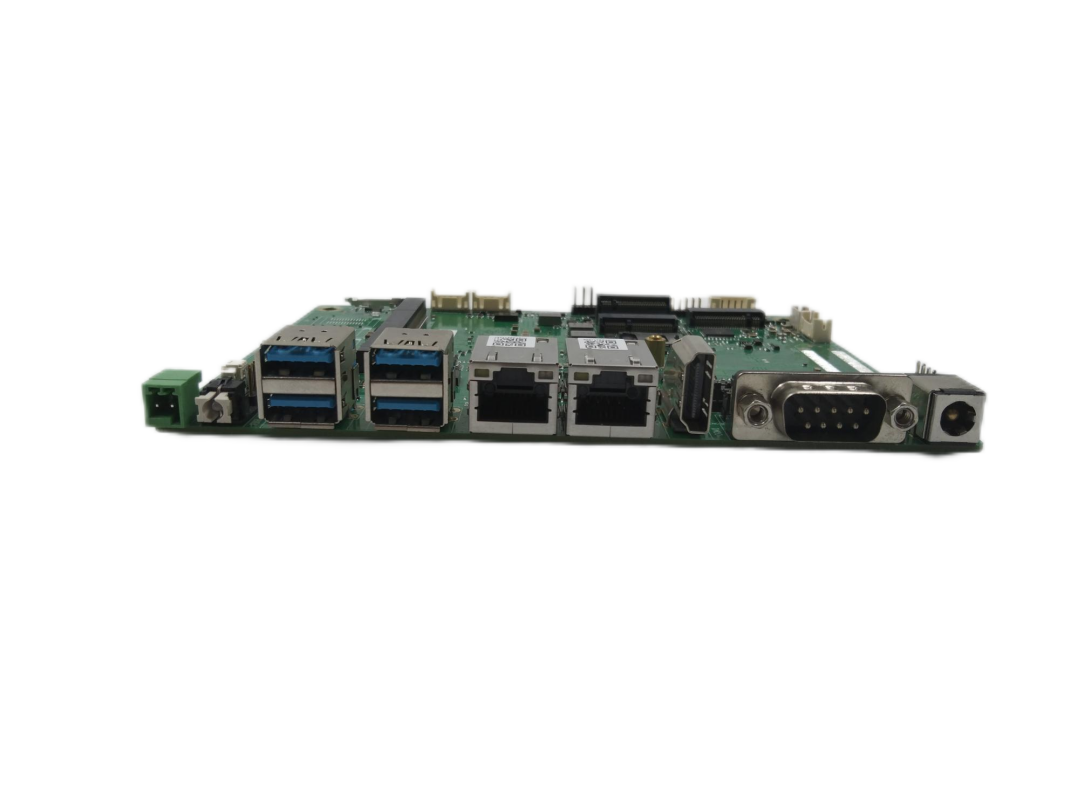

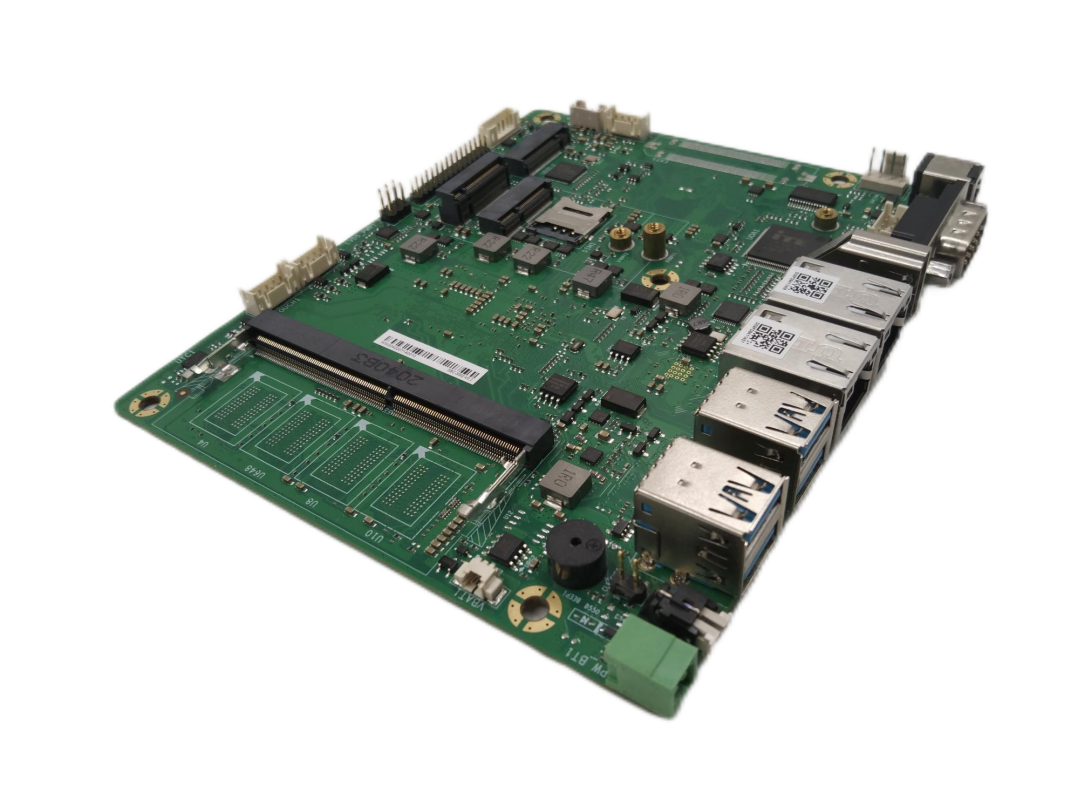

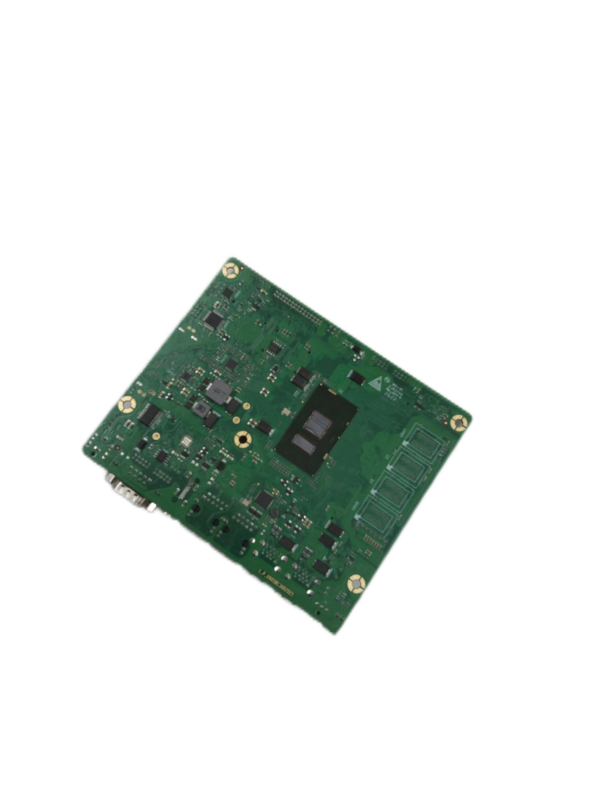

Product Model SBC3-SKLA-2T1C4U
-Support Skylake-U/Kaby Lake-U
-1*DDR4 SODIM+onboard (optional) memory
-Support Wifi6, 4G LTE/5G module
-Extendable COM ports
-High speed M.2 slots
Category | content |
| Internal Central Processing Unit (CPU) | lntel Core i5-6200U(2C4T,2.30GHz~2.80GHz,3MB Cache) |
lntel Core i5-7200U(2C4T,2.50GHz~3.10GHz,3MB Cache) | |
| Chipset | Based on the Sky Lake-U and Kaby Lake-U platforms |
| Memory | 1 * DDR4 SODIMM slot, supporting up to 16GB |
| (Optional: onboard DDR4 memory, supports up to 16GB) | |
| storage | 1 * M.2 M-KEY 2280 interface, supporting NVMe/NGFF |
| Display | |
| Triple Display | Integrated Intel HD Graphics 520/620 |
1*HDMI、1*VGA、1*LVDS | |
| I/O interface | |
I/O | 1*2PIN Remote switch terminal, 1*Power, 4*USB 3.0, 2*RJ45 LAN ports |
1*HDMI, 1*COM RS-232/485, 1*DC-IN | |
Inner I/O | 1*2x5 PIN Support resistive/capacitive touch screen, 1*VGA |
1*LVDS, 1*LVDS Power jumper, 1*INVT backlight power | |
| 1*2x5 PIN Front audio; 1*4PIN Speaker | |
1*2x5 PIN, for 1*COM RS-232 port | |
1*EXT slot (Extendable for: 4*COM ports, 2*PCI-e x1, 1*SATA, 2*USB, PS2) | |
1*4PIN CPU_FA | |
| Expansion slot | 1 * M.2 E-KEY 2230 interface CNVI, supporting WiFi6 |
1 * M.2 B-KEY interface, supporting 4/5G modules | |
| Electrical performance | |
| Power type | Suggest using 12V 5A |
| Institutional parameters | |
| size | 150mm*125mm |
| Network support | |
| Network port | 1* Intel i226V 2.5GbE, 1* i219-LM 10/100/1000MB LAN port |
| System support | |
| operating system | Windows 7/10; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
