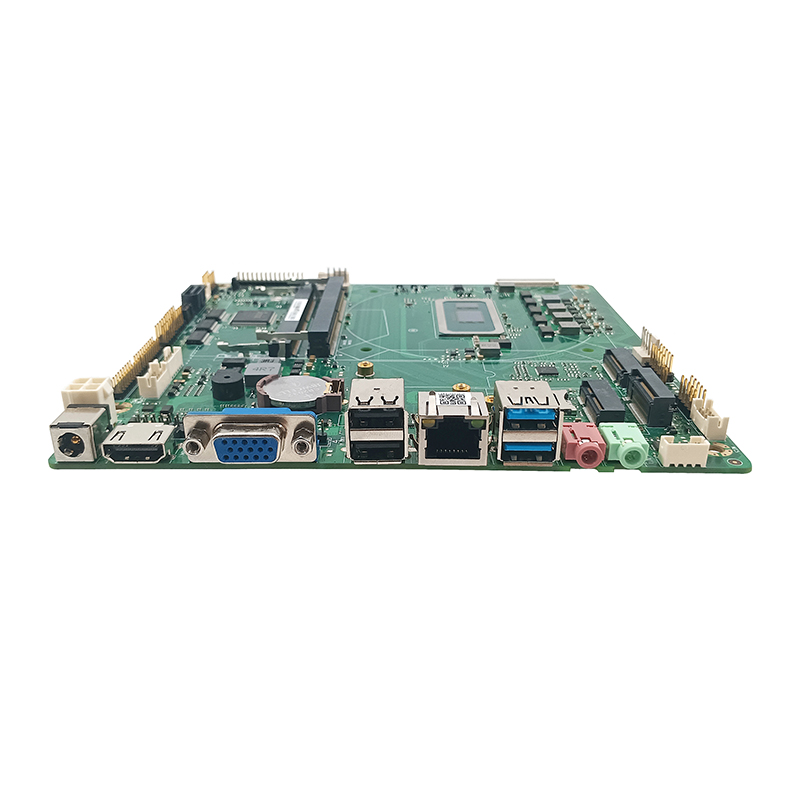

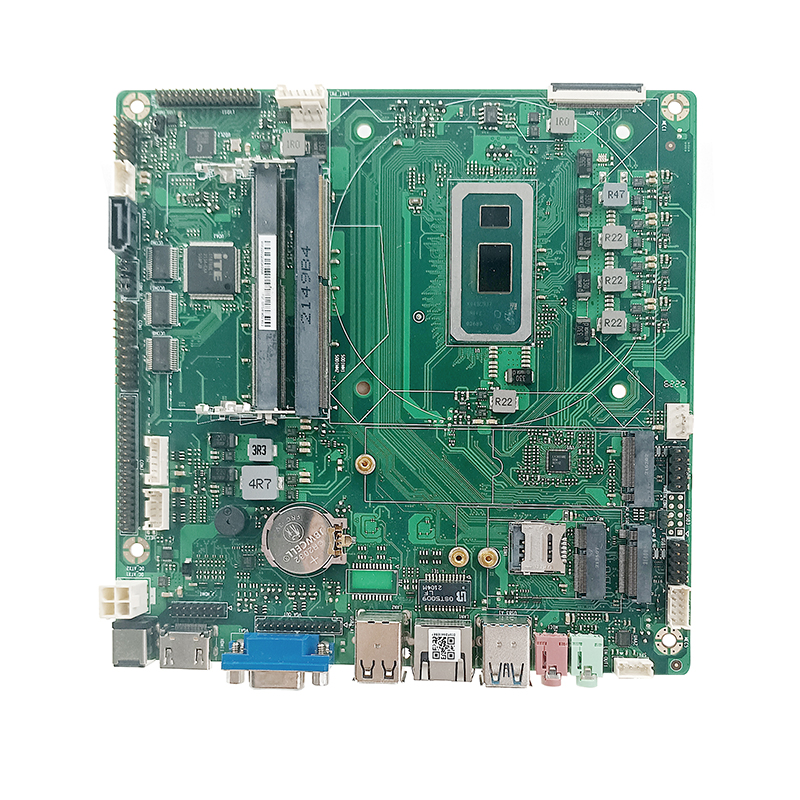

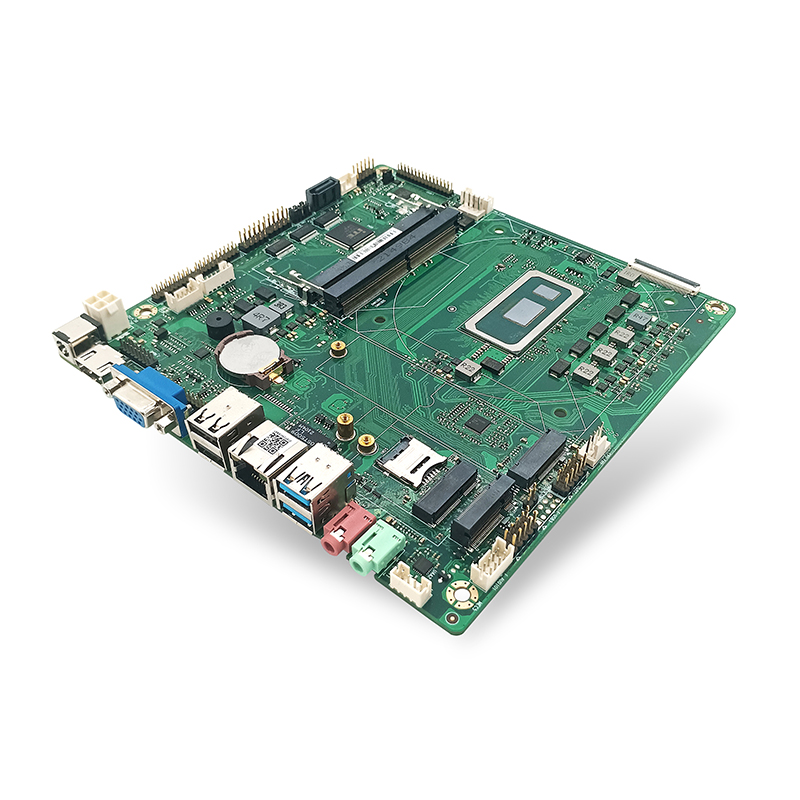

Product Model ITX-WKLA-1R4U
-Support i3/i5/i7 8/10 Gen CPU
-2*DDR4 RAM SO-DMIMM slot
-Support WiFi 4G/5G
-Extra COM port extendable
-High speed M.2 port
Category | content |
| Internal Central Processing Unit (CPU) | lntel Core i5-8265U(4C8T,1.6GHz~3.9GHz,6MB） |
lntel Core i5-10210U(4C8T,1.6GHz~4.2GHz,6MB） | |
| Chipset | Based on Whiskey Lake/Comet Lake platform |
| Memory | 2*DDR4 SO-DIMM slot Max support 64GB |
| storage | 1* M.2 M-Key 2280 slot, Support NVME/NGFF |
1* SATA3.0 socket | |
| Display | |
| Triple Dispaly | Integrated Intle® UHD Graphics(Depending on the specific CPU) |
| 1*VGA,1*HDMI,1*LVDS or eDP port(either-or,Default to LVDS) | |
support VGA、HDMI、LVDS or eDP Sync or Async triple display | |
| I/O interface | |

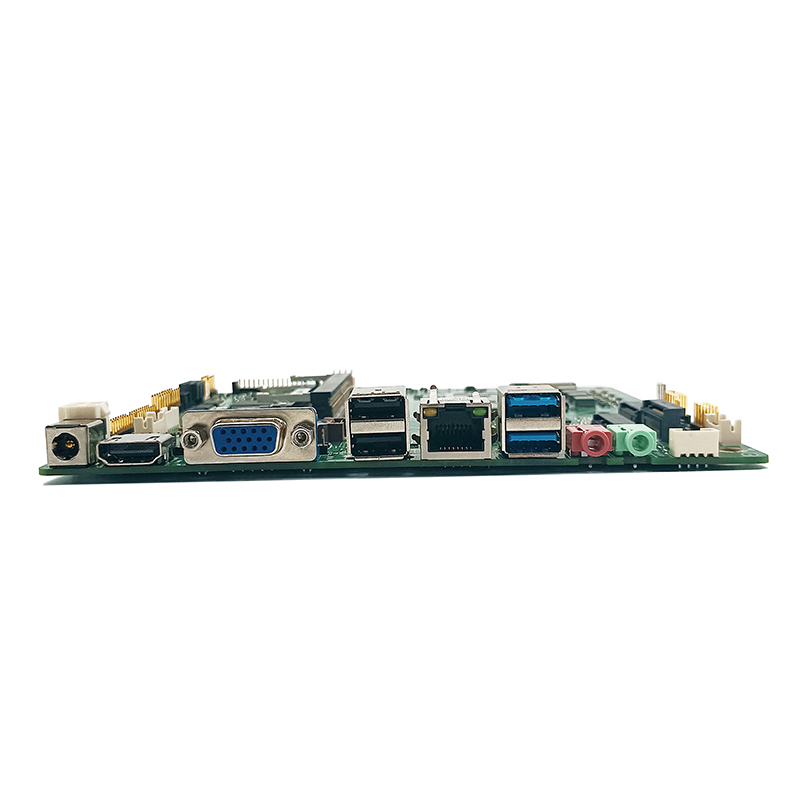

Rear I/O Ports | 1*HDMI;1*VGA(Customizable as HDMI) |
| 2*USB 3.0;2*USB 2.0(2* USB2.0 Iayout with LAN2) | |
| 1*RJ-45 1000M LAN | |
1*Line out(green)、 1*MIC(red)、1*12V DC port | |
Inner I/O ports | 1* JHDMI 2*8Pin（Share same signal with rear HDMI, Optional） |
1* LVDS 2*15pin, Support dual channels 24bit(Optional eDP, default is LVDS) | |
1* 6pin Power for Screen backlight, 1* eDP 2*15pin(LVDS optional, 1 out of 2) | |
4* USB 2.0 2x 2*5Pin | |
1* Front audio 2*5pin, 1* Speaker1*4pin | |
6* COM RS-232 (COM2 Support RS-232/ RS-485) | |
1* PS2 1*6pin, 1* GPIO 2*5pin,Support 8-in/out GPIO | |
1* SATA power 1*4Pin, 1* ATX Power 1*4pin | |
| 1* Front panel 2*5Pin | |
| Expansion slot | 1* M.2 E-KEY 2230 Slot CNVI，Support WiFi |
1* M.2 B-KEY Slot, Support 4/5G Module | |
| Electrical performance | |
| Power type | DC 12V |
| Institutional parameters | |
| size | 170mm*170mm |
| Network support | |
| Network port | 1* 8111H GbE LAN（Optional 2 LAN）, Wake-on-LAN/PXE |
| System support | |
| operating system | Windows 10/11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
